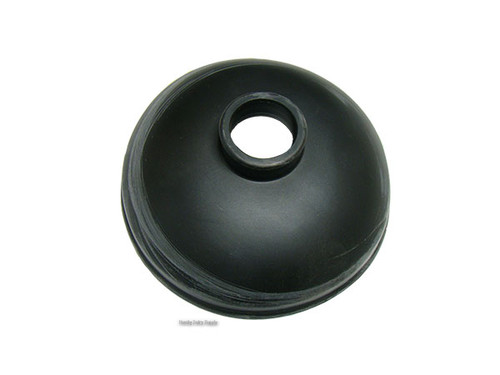

SHAFT SHIELD FOR 1.0 INCH DIAMETER AGITATOR SHAFTS.
Works with 7/8 and 1 inch diameter agitators.
Fits current Mueller and GEA WestfaliaSurge Agitator Shafts
Bottom O.D. is 4.5 inches (See last image for all measurements)
Made of Highest Quality FDA Approved EPDM
EPDM provides superior properties for high temperature applications. EPDM has excellent resistance to heat, ozone and sunlight. Good choice where alkalis, acids and oxygenated detergents are used (such as dairy cleaning chemicals) Superior resistance to steam.
Made in USA
Original Parts by Paul Mueller Company
Related Items;
M-31393 / 8827899 Agitator Drive assembly
30-8803710kit - 31393 / 8827899 drive assembly plus a shaft adaptor for the light duty agitator paddles
M-3952 Standard Shaft Shield - 1 inch - for indoor use only (this item)
Mueller Agitator Paddle assemblies available - call for availability - some are in stock and some are special order
Mueller - M-3118 Shaft Shield for 1.25 inch diameter
Mueller - M-3952 Shaft Shield for 1.0 inch diameter (current model agitator paddles)
Mueller - M-92835 Shaft Shield for 1.0 inch diameter with teflon o-ring for outdoor use
GEA Westfalia Surge Koolway 7750-0085-377 Shaft shield for 5/8 or 11/16 inch diameter
GEA Westfalia Surge Koolway 7750-0085-378 Shaft shield for 1.4 inch diameter
Sunset - 5708390 Shaft Shield for 1 - 1/2 inch diameter
Sunset - 700390M Shaft Shield for 1 - 1/8 inch diameter
Sunset - 700230M Shaft Shield for 7/8 inch diameter
Sunset - 700380M Shaft Shield for 3/4 inch diameter
updated February 2024
