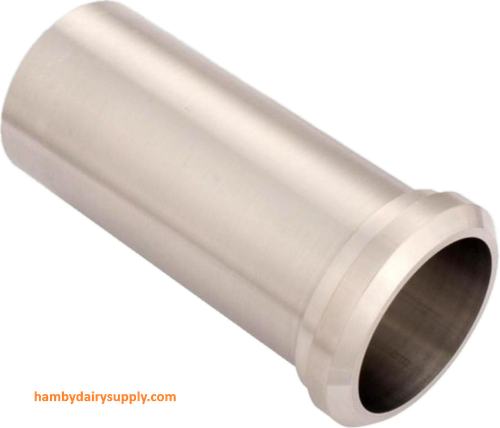

Short adapter. from milk tank valve to 2.0 ID inch milk transfer hose.
Click pictures for more details
Look at detail images for proper way to measure sanitary stainless steel threaded fittings
Dimensions;
A = 4.7 inch length (may vary)
B = 2.0 inch OD stainless steel tubing
C = 2 3/8 OD ferrule outside dimension Male Bevel Seat x Hose Adapter
Order Nut & hose separately - see link below This item is commonly used to connect the transfer hose to milk tank valves.
Part numbers for items in picture with Tigerflex Hose - order each separately:
1090-056ft - 2.0 inch I.D. Tigerflex Milk Hose / Tubing (sold per foot)
1000-937 - Male Bevel Seat x Hose adaptor - 2 inch (this item only)
1000-392 13H2.0 - Hexnut for 2 inch - Stainless Steel
7750-0081-672 - 2 inch Gray Threaded Cap for Bulk Tank Washers
1000-032 - Buna Rubber gasket for 2 inch Bevel Seat
Used for milk trucks, processing plants, honey, Maple Syrup and biodiesel.
14AHT2.0 81590001 4999-1000-937
available for sizes of 1 inch, 2, 2.5, 3.0 and 4 inch O.D. stainless steel tubing
Related Items;
1000-385 Male Bevel Seat Weld On ferrule
1000-937 extra long 4.7 inch male bevel seat weld on ferrule
1000-392 - 2.0 Stainless Steel Hex Nut
1000-362 - Weld On NPT for pipe thread
1000-622 Female Bevel Seat Weld On Ferrule
In Stock - updated March 2026
