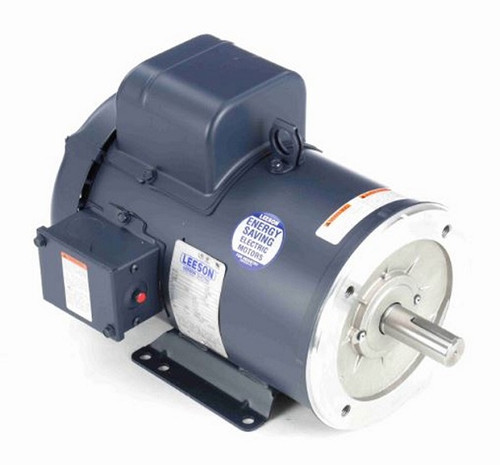

3 HP Electric motor
- 230 volts Single phase
- 60 HZ
- 1.0 service factor
- Keyed Shaft 1 1/8" Diameter x 2 3/4" length
- 1800 RPM
- 33.6/16.8 amps
- NEMA 184TC Frame
- Base Mount and C face pump mount. 4 predrilled holes in face
- overload protection = Manual
- Reversible
- Rigid Base Mount
- Ball Bearings
- Class F Insulation
- UL and CSA approved
- TEFC = Totally Enclosed Fan Cooled.
Ships on a pallet on a semi truck. Not UPS Shippable
For Transfer pumps, water pumps, vacuum pumps
Electric motor has rigid base with C-Face mount.
1 1/8 inch shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 7 1/4" on center measured across the shaft.
Wiring diagram on motor name plate.
