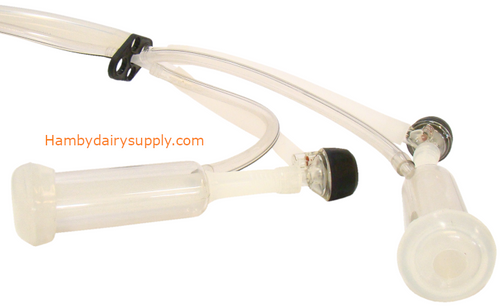

ITP 205 Goat Assembly with silicone inflations, silicone milk hose, clear shells

$219.00
(No reviews yet) Write a Review
SKU:
1588cl

Commercial Quality Goat Milking Unit Provides all the parts you need from the udder to the bucket lid


Includes;


  • 4710 Silicone goat liners (0/300 inflations)
  • 4707 Clear Plastic shells offer visibility to see that liner is installed correctly and working properly.
  • 1090-089 Silicone milk hose - large 5/8 I.D.
  • 9716 Silicone milk hose  - small 7/16 inch I.D.
  • ITP2020009 Clear Milk Y
  • ITP2040010 Hose Bracket
  • 7932 Pulsation Y for 9/32 tubing
  • 4716 Clear 9/32 pulsation hose


ITP2059001  ITP205 semi automatic Goat Claws. An individual milking claw incorporating a shut-off mechanism which automatically controls the vacuum supply to each liner during both milking and washing. As soon as the teat enters the liner, the valves on the ITP205 automatically open. Then, when the teat is removed at the end of milking, rapid air intake creates a vacuum in the valve which automatically closes it. This gives a range of benefits: Less work for the operator during milking and washing. Valves close automatically if the cluster is kicked off. Less vacuum fluctuation when liners are fitted and removed, thus avoiding vacuum drop or intake of dirt. Ability to isolate an unhealthy teat during milking. Easy to inspect for cleaning and maintenance. Name brand quality – not copies or seconds. ITP 205 claws reduce air loss while attaching the milker, making them ideal for portable milkers and situations with under sized vacuum pumps.

Kit provides about 3 feet from the udder to the bucket lid. Longer hoses available

This unit works with Hamby Dairy Supply clear buckets, stainless steel buckets and pipeline milking systems.


Included on Hamby Dairy Supply Bucket Milkers

1561 and 1573

***Not compatible with Surge bucket milkers or Hoegger milking machines.

Grade A approved in USA and Canada. This unit will work with small portable systems, all pipeline milking systems or the largest commercial goat operation.

Optional 4750 green plastic inline shutoff valves are not included, but are available separately. Order the size for 1/2 inch tubing.

Upgrade option is Top Flow Z


December 2022



ITP 205 Spare Parts - See Links below

ITP2040005 Upper O-Ring

ITP2040004 Lower O-Ring

ITP2050019 Wash Pin

ITP2050006 Diffuser

ITP2040002 Screw on black bottom

ITP2000003 Stainless Steel Shutoff disk

ITP2059001 Set of 2 ITP205 Goat / sheep milker autovalves

Components Made in Italy and USA





12/22
